Basic Info.
Model NO.
HZS60VY
Discharge Height
4m
Nominal Volume of Mixer
1000L
Production Period
60s
Burdening Capability of Burdening Plant
1600L/Silo
Transport Package
Comply with Export Packaging Requirements
Trademark
XCMG
Origin
Xuzhou, Jiangsu, China
HS Code
84295100
Production Capacity
10000 Units/Year
Product Description

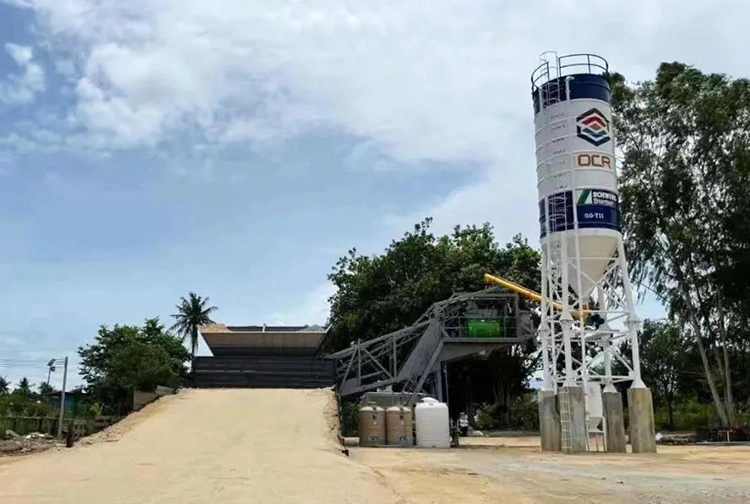

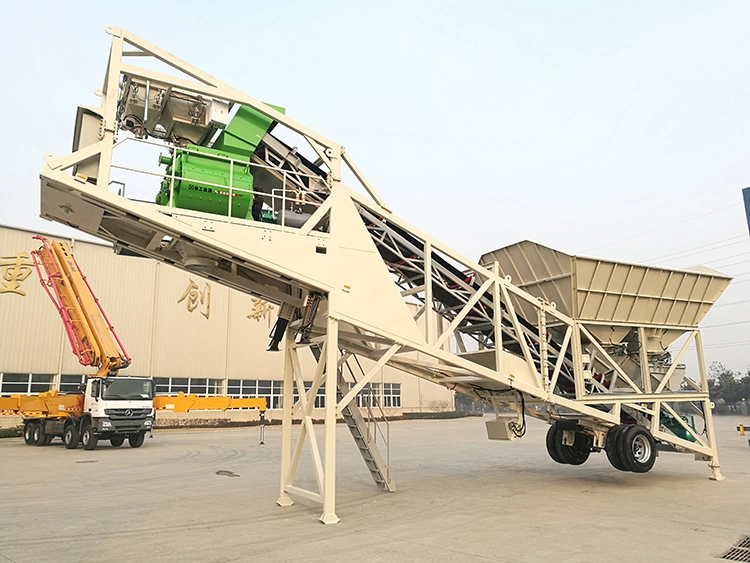

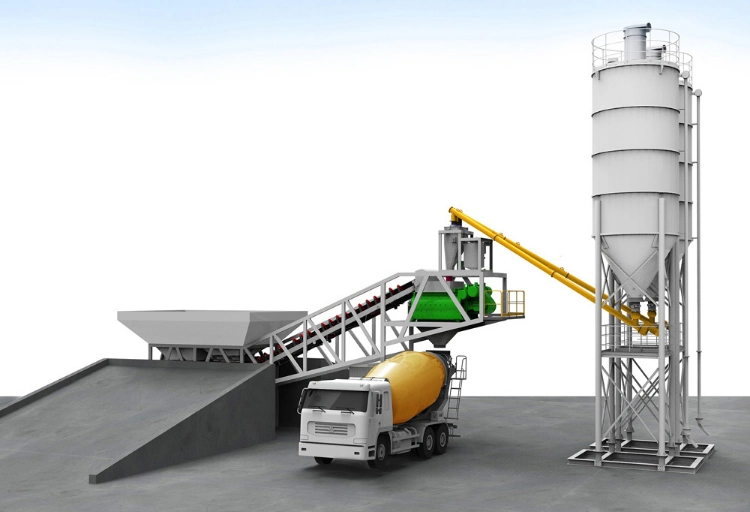

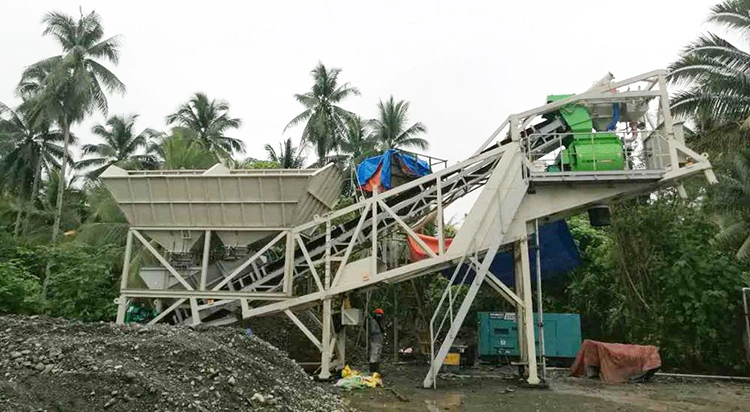

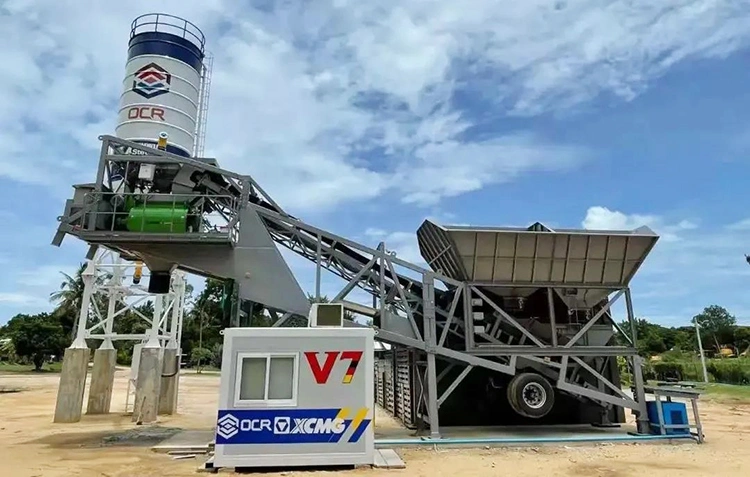

XCMG Official HZS60VY Batch Plant Concrete Mobile 60 m3 Automatic Mobile Concrete Batching Plant
Unique "Three-straight-face" anti-blocking gate structure is adopted to provide smooth batching of aggregate.
Liquid batching is provided with "non-return" function, which can eliminate empty pipe and start and discharge immediately.
Overall propelling technology is used for belt weigher, improving delivery efficiency by 40%. Elevating hopper feeder adopts unique mechanical variable-speed winch without frequency conversion, which can realize zero-speed start, high-speed hoist and low-speed stop, with high speed and small impact.
Panoramic simulation design is used for control procedure to eliminate redundant link-up of procedures. Logic control of aggregate is used to ensure no dead band in delivery and high efficiency.
The machine is provided with customer management, formula management, production data management, and such functions as cleaning by one key, digital calibration and monitoring of black box.
Three-point staying weighing framework features good centering property and strong anti-interference performance.
Spiral loop-current mixing technology features faster material cycle, more violent countercurrent and more uniform agitating, with agitating efficiency 10% higher than its counterparts.
| MODEL | UNIT | HZS60VY |
| Theoretical production rate | M³/h | 60 |
| Discharge height | m | 4 |
| Mixer type | | JS750 |
| Mixer power | kW | 2×15 |
| Nominal volume of mixer | L | 1000 |
| Production period | S | 60 |
| Max. diameter of aggregate | mm | ≤60 |
| Max. diameter of aggregate | m³ | 4×5 |
| Burdening capability of burdening plant | L/Silo | 1600 |
| Conveying capability of loader elevator | t/h | 120 |
| Standard installed capacity | kW | 76 |
| Measuring range and accuracy of sand and stone | kg | (500~2500)±2% |
| Cement measuring range and accuracy | kg | (100~500)±1% |
| Water measuring range and accuracy | kg | (40~200)±1% |
| Additive measuring range and accuracy | kg | (10~30)±1% |
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
